1. Introduction

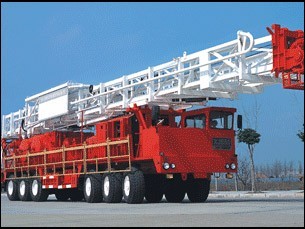

The Model XJ160 is a self-propelled workover rig powered by a single engine of the largest class, with a maximum static hook load of 1470kN. It is mainly used for overhauling, workover, formation testing, fishing and pump inspection operations in deep wells in onshore oilfields, which can be used for sidetracking and middle-shallow well drilling.
2. Main Technical Parameters
|
⑴Model |
XJ160 |
Note |
|
⑵Workover Depth：Nominal Workover Depth |
27/8″EUE Tubing 8500m |
|
|
27/8″DP |
7000m |
|
|
|
Nominal Overhaul Depth |
|
|
|
Nominal Drilling Depth |
|
|
⑶Max. Hook Load |
1580kN |
|
|
⑷Installed Power |
630HP(467kW)/2100r/min |
|
|
⑸Height of Madt |
35m |
|
|
⑹Travelling System：Effective Numbers of Rope |
10 |
|
|
|
Diameter of Lifting Wire Rope |
|
|
Hook Lifting Speed |
0.2～1.5m/s |
|
|
⑺Rotary Table Drift Diameter |
φ520mm(201/2") |
|
|
⑻Swivel Central Tube Drift Diameter |
φ76mm |
|
|
⑼Drill Floor Height |
6m |
|
