1.Introduction

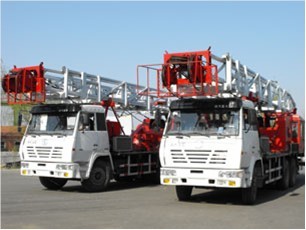

The Model XJ70 workover rig adopts single drum winch, hydraulic lifting double-section (or single section) derrick, select economical and practical famous brand engine and ALLISON hydraulic transmission box. Equipped with a rotary table rotating system for rotating operations. The product has the features of simple structure, good transport performance, convenient field installation, simple maintenance and so on.
2.Main Technical Parameters
|
Model |
XJ70 |
Note |
|
Workover Depth（2 7/8″ Height Weight Tubing）m（ft） |
3200（10500） |
|
|
Overhaul Depth（2 7/8″DP）m（ft） |
2600（8530） |
|
|
Nominal Hook Load kN（lb） |
400（89920） |
|
|
Max. Hook Load kN（lb） |
675（151740） |
|
|
Diameter of Drilling Line mm（in.）/Effective Numbers of Drilling Line （n） |
φ22（0.87）/6 |
|
|
Max Hoisting Speed of Hookm/s（ft/s） |
1.4（4.6） |
|
|
Transportation Dimension (L×W×H)（Includes Mast）m（ft） |
13.72×2.7×4.18（45.01×8.86×13.71） |
|
|
Weight kg（lb） |
29000（61729） |
|
