1.Structure and Application

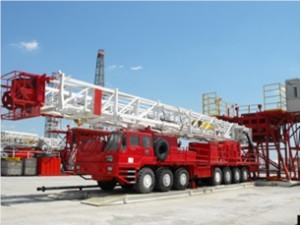

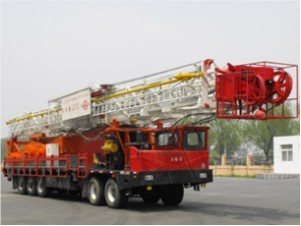

The power, drawworks, derricks, traveling system and transmission mechanism of the rig are all loaded on the self-propelled chassis, which has great advantages in improving the efficiency of drilling operations relocation. Our company has 1,000 meters, 1,500 meters, 2,000 meters, 3,000 meters and the world’s largest class of 4,000 meters deep drilling rigs, the maximum static load from 1125 to 2250 Kn, with a large operating load, reliable performance, strong cross-country ability, easy to move, and so on, which is suitable for middle shallow well drilling, and can be used in Alpine, desert, Plateau and other areas.
2.Main Technical Parameters
|
Model |
ZJ10/900CZ |
ZJ15/1125CZ |
ZJ20/1580CZ |
ZJ30/1700CZ |
ZJ40/2250CZ |
|
Drilling Depth: m (4 1/2″DP) |
1000 |
1500 |
2000 |
3000 |
4000 |
|
Overhauling Depth: m (3 1/2″DP) |
3200 |
4500 |
5500 |
6500 |
7000 |
|
Max. Hook Load (kN) |
900 |
1125 |
1580 |
1800 |
2250 |
|
Hook Speed |
0.2-1.4 |
||||
|
Derrick Height (m) |
29 |
32 |
35 |
36/38 |
36/38 |
|
Derrick Style |
Mast |
Mast |
Mast |
Mast or Erective |
Mast or Erective |
|
Type of Engine |
CAT3406 or C-9 ATAAC |
CAT3408DITA or C-15 ATAAC |
CAT3412 DITA or C-16 ATAAC |
2*CAT3408 DITA or 2*C-15 ATAAC |
2*CAT3408 DITA or 2*C-15 ATAAC |
|
Engine Power (kW) |
269 or261 |
354 |
485 or492 |
2*354 |
2*396 or 2*392 |
|
Hydraulic Transmission Box |
S5600HR |
S5600HR |
S6610HR |
2*S56HR |
2*S56HR |
|
Transmission Type |
Hydraulic+Mechnical |
||||
|
Travelling System |
3×4 |
4×5 |
4×5 |
4×5/5*6 |
5×6 |
|
Φ26 |
Φ26 |
φ29 |
φ32 |
φ32 |
|
|
Type of Hook Block |
YG90 |
YG110 |
YG160 |
YG180 |
YG225 |
|
Type of Swivel |
SL110 |
SL135 |
SL160 |
SL225 |
SL225 |
|
Type of Rotary Table |
ZP175 |
ZP175 |
ZP175 |
ZP205/ZP275 |
ZP205/ZP275 |
|
Type of Chassis |
XD40/8×6 |
XD50/10×8 |
XD60/12×8 |
XD70/14×8 |
XD70/14×8 |
|
Approach/Departure Angle |
26°/18° |
||||
|
Min. Ground Clearance (mm) |
311 |
||||
|
Max. Climbing Gradient |
30% |
26% |
26% |
26% |
26% |
|
Min. Turning Diameter (mm) |
28 |
30 |
38 |
41 |
41 |
|
Transportation Dimension (m) |
16.7×2.8×4.2 |
18.8×2.85×4.3 |
20.5×2.85×4.45 |
22.3×3×4.45 |
22.3×3×4.48 |
|
Main-unit Weight (Kg) |
42000 |
50000 |
58000 |
76000 |
78000 |
|
Weight of Accessories (Kg) |
15000 |
20000 |
24000 |
32000 |
34000 |
